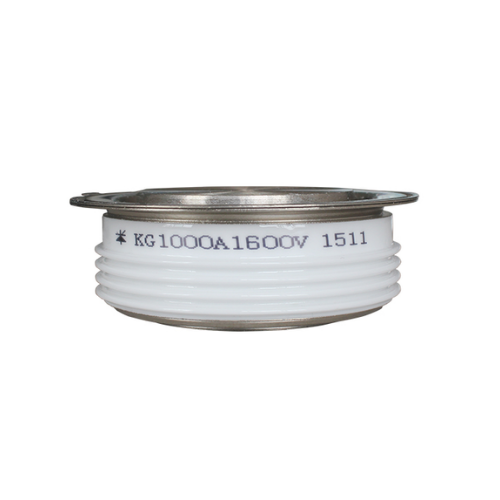

The KG1000A 8-14 is a high-frequency thyristor engineered for advanced power switching applications requiring fast response, reliable thermal control, and compact form factor. Designed with interdigitated amplifying gates and a hermetically sealed metal-ceramic package, it offers low switching losses, short turn-off time, and high surge current endurance. This component is ideal for use in induction heating, electronic welding, and inverter-based systems.
✅ Features
Fast switching with interdigitated gates: Ensures precise triggering and high di/dt capability
Short turn-off time (6–15μs): Ideal for high-frequency operations
Hermetically sealed ceramic-metal housing: Delivers exceptional thermal and environmental stability
Low conduction and switching losses: Enhances energy efficiency under heavy industrial loads
High surge current resistance: Can handle up to 12kA surge safely
Thermal resistance of 0.022°C/W: Supports effective heat dissipation for continuous high-current usage
Robust build with wide voltage range: Handles repetitive voltages between 800V and 1400V, with average on-state current up to 1000A
✅ Applications
Inductive heating equipment
Electronic welding systems
Self-commutated inverter circuits
AC motor speed control drives
Industrial power switching platforms
