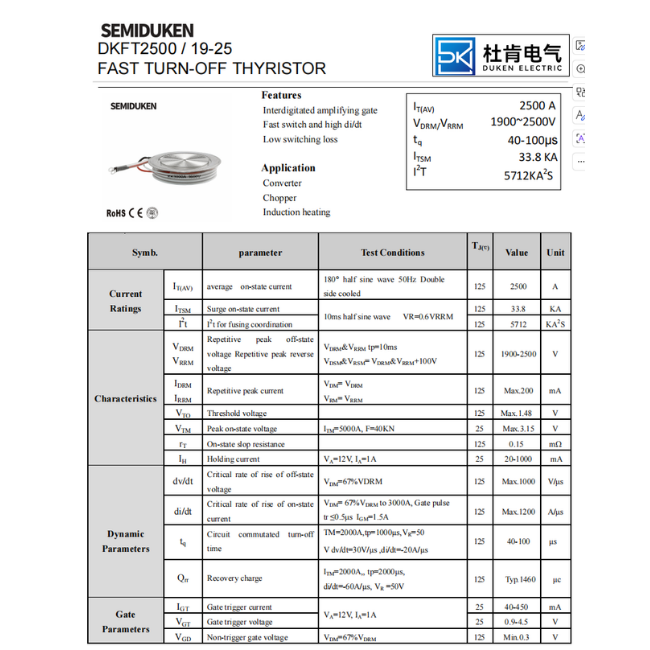

The DKFT2500A / 19-25 Fast Turn-Off Thyristor is a high-power disc-type semiconductor device designed for industrial power switching and control applications. It features an interdigitated amplifying gate, fast switching capability, high di/dt performance, and low switching loss for demanding power systems. With an average on-state current of 2500A and a repetitive peak off-state/reverse voltage range of 1900V to 2500V, this thyristor is well suited for converters, chopper circuits, and induction heating equipment. Its double-side cooled clamping structure provides efficient heat dissipation and reliable operation in high-current assemblies.
Product Description
The DKFT2500A / 19-25 Fast Turn-Off Thyristor is a high-power disc-type semiconductor device designed for industrial power switching and control applications. It features an interdigitated amplifying gate, fast switching capability, high di/dt performance, and low switching loss for demanding power systems. With an average on-state current of 2500A and a repetitive peak off-state/reverse voltage range of 1900V to 2500V, this thyristor is well suited for converters, chopper circuits, and induction heating equipment. Its double-side cooled clamping structure provides efficient heat dissipation and reliable operation in high-current assemblies.
Features
Fast turn-off thyristor design
High current handling capability
Fast switching and high di/dt performance
Low switching loss
Interdigitated amplifying gate
Double-side cooled structure
Suitable for high-power industrial equipment
Applications
Power converters
Chopper circuits
Induction heating equipment
Industrial power control systems
High-current switching equipment
